CDR FoodLab

Rapid analysis of food and beverages with CDR FOODLAB®

Your ideal partner for reliability and ease of use

CDR FOODLAB® is a line of chemical analysis systems for quality control of foods and beverages. For use in the laboratory or on the production line, even without the need for specialised personnel.

Discover products
Watch the video

What can you analyse?

You will be able to perform analysis of several samples at the same time and carry out a wide range of determinations of many foods and beverages with the same reliability as traditional methods.

Fish Oil

Frying oils and fried snacks

Fish Oil

Olive oil

Palm oil

Bakery products and spreads

Nuts

Milk and dairy products

Egg products

Tomato derivatives

Vinegar

Wine

Beer

Cider

Kombucha

Coffee Fermentation

Green coffee, roasted coffee and beverage

Water for coffee preparation

Soft Drinks

Fruit Juices

Tea

Plant-based Beverages

Kefir

Water

Animal feeds and silages

Pet Food

Simple and fast

The innovation carried out by CDR research laboratories has enabled us to speed up and simplify analysis procedures. We have made sample preparation absent or very simple. The reagents in our systems are pre-filled into vials and ready to use. The result is obtained by a simple photometric reading. In addition, thanks to Multitasking Mode, analysis times can be significantly reduced.

Technical features

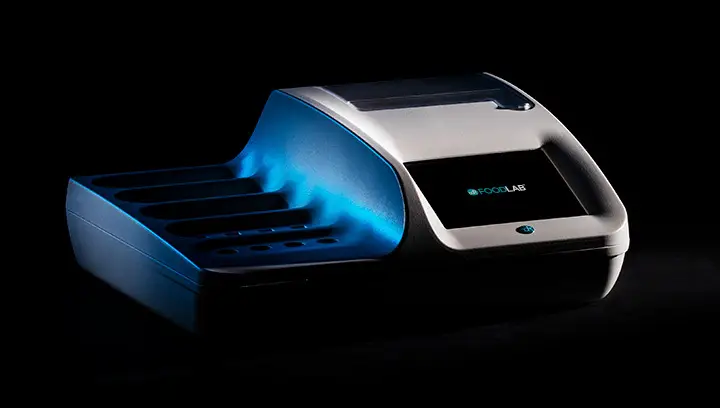

The analysis system consists of a photometric technology analyser, available in two items, and a set of dedicated, ready-to-use reagent kits developed by CDR chemical laboratories.

New methods, same reliability

The analytical methods developed by CDR research laboratories are optimised for reliable results. Like those obtained by traditional methods, but simpler and faster. The photometric technology used makes CDR FoodLab® systems highly sensitive instruments with a very wide measuring range, which ensures excellent repeatability of the analysis results.

An innovative photometric technology

The use of innovative photometric technology has made it possible to optimise and develop new analytical methods for determining important parameters of foods and beverages. The reading cell guarantees high sensitivity, a very wide measuring range and excellent repeatability of the analysis results thanks to innovative LED light sources with fixed wavelengths (ultraviolet – visible spectrum, power up to 6 O.D.).

Online help for analytical procedures

The system is easy and intuitive, everyone can use it in autonomy. Analyses are carried out in just a few steps. In addition, it has a help function that guides you step by step through the operations.

Multitasking Mode

The multitasking mode reduces analysis time. It is possible to perform several analyses simultaneously of the same sample or different determinations of the same parameter on a batch of different samples. During an analysis session you can start another one and put the first one in the background. You can return to background analysis with one click.

Internal memory

The analyser is equipped with an internal memory capable of storing thousands of analysis results that can be viewed on the display or exported via the USB or Ethernet port.

Barcode and QR Code Reader

The systems of CDR FoodLab® range handle barcode or QR code readers. The sample code is automatically displayed on the analyser. It is possible to associate all the analyses performed on that sample.

Connection to a host computer or intranet

You can share analysis results by connecting the analyser to your intranet via the Ethernet port or export them by connecting the analyser via the USB port to the host computer.

Free of service and maintenance costs

No calibration is necessary because the instrument is supplied pre-calibrated. The analysers use LED light sources and therefore no periodic maintenance is required.

Continuously Evolving

The company operates as a workshop of innovation and development that, thanks to a continuous research process, creates products and systems that meet the needs of rapidly changing markets.
FULL VERSION JUNIOR VERSION
Tests Complete analysis panel Configurable analysis panel
Simultaneous analyses 16 3
Possibility of running several tests on the same sample ✔️ -
Incubation module 37 ̊C thermostatic block with 16 slots 37 ̊C thermostated reading block with incubation function
Internal memory to store analysis results ✔️ ✔️
Touch Screen Display ✔️ ✔️
Printer ✔️ -
USB port to connect to a PC ✔️ ✔️
Ethernet (LAN) port ✔️ -
Wireless link for external printer - ✔️
Operating Temperature 15 – 35 °C 15 – 35 °C
Dimensions and weight 32 X 29,5 X 13 cm (L x P x H) – 2,8 Kg 15 x 22 x 8,3 cm (L x P x H) – 0,80 Kg
Optional Lithium ion battery - ✔️
NO Mintenance costs ✔️ ✔️
Pre-calibrated ✔️ ✔️
Warrenty 3 years, with online registration ✔️ ✔️
